Connecting to a Campus System via SSH (Windows)

Overview

This tutorial is for members of Science seeking to establish an SSH connection to a campus PC/server without having VPN access.

Audience

This tutorial is written for:

  • Members of the Faculty of Science (faculty/staff/student)
  • Those comfortable with computers and installing/configuring software

Prerequisites

To complete this tutorial, you must:

  • Have a PC or server on campus that is already configured for SSH connections (including having the service enabled and the correct firewall ports open)
  • Know the hostname or IP address of the PC or server on campus to which you wish to connect
  • Have requested and been approved for access to gate.sci.uwo.ca

Tutorial

  1. Install PuTTY on your computer and launch it.

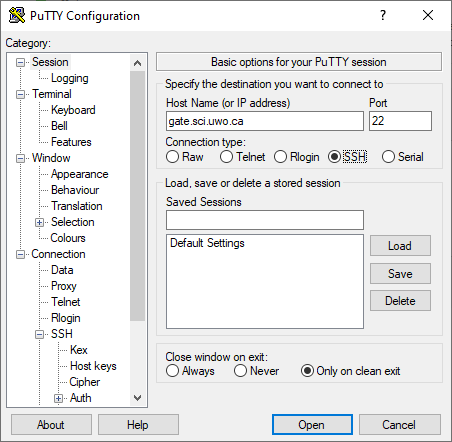

  2. Populate the following fields:
    Host Name gate.sci.uwo.ca
    Port 22
    Connection type SSH
    PuTTY

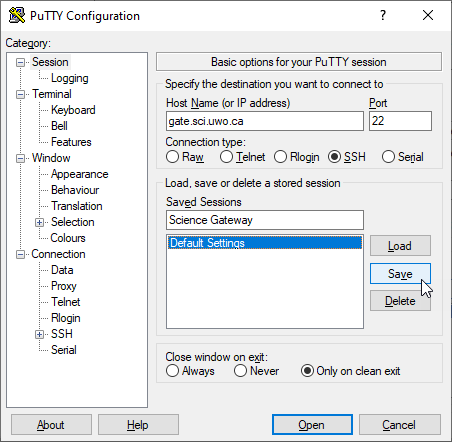

  3. Enter a descriptive name in the Saved Sessions field (such as Science Gateway) and click Save.
    PuTTY

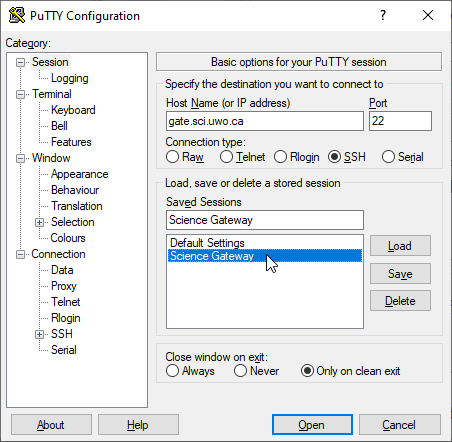

  4. Double-click the session you created earlier in the Saved Sessions list to connect to gate.sci.uwo.ca.
    PuTTY

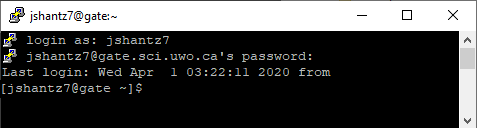

  5. When prompted, enter your Western username and password.   Note that you will not be able to see what you are typing when entering your password.
    PuTTY

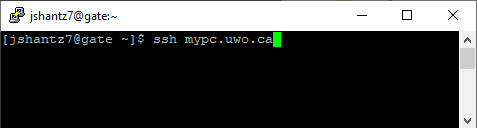

  6. Once connected, SSH to the campus system to which you wish to connect.  In the example below, we SSH from gate.sci.uwo.ca to mypc.uwo.ca.
    PuTTY

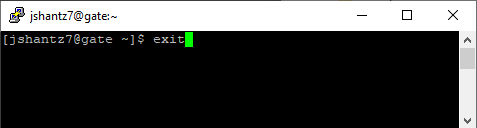

  7. Once finished, type exit and press Enter.
    PuTTY
